ECM Synchronika - Adjusting Pump Pressure

Below you will find instructions on how to increase or decrease the pump pressure on the ECM Synchronika.

Tools Needed:

• Flathead screwdriver
• Backflush Blank

1. Remove the water tank from the machine as you will be tilting it to the side.

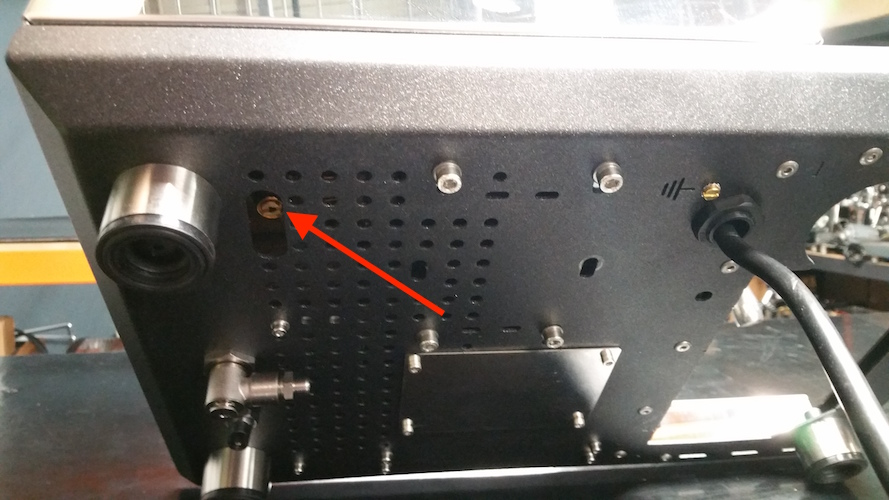

2. Tip the machine to the right, if you look on the bottom of the machine near the rear left foot you will see an opening that gives access to the pump adjustment screw. Turning this clockwise will increase pressure, counterclockwise will decrease pressure. Make half turn adjustments at a time and test machine with a backflush blank to check where pump pressure is at.
