Steam / Hot Water Leak - Diagnosis & Repair

Below are photos for diagnosing and repairing a steam / hot water leak on a QM67, Alex Duetto, Andreja Premium, Vetrano 2B, Pro 700 and any other machine that uses the same style steam / hot water knob. The photos from this repair are from an Alex Duetto. For this repair you will need:

• pick
• flat head screw driver
• 2x adjustable wrench
• threadlocker

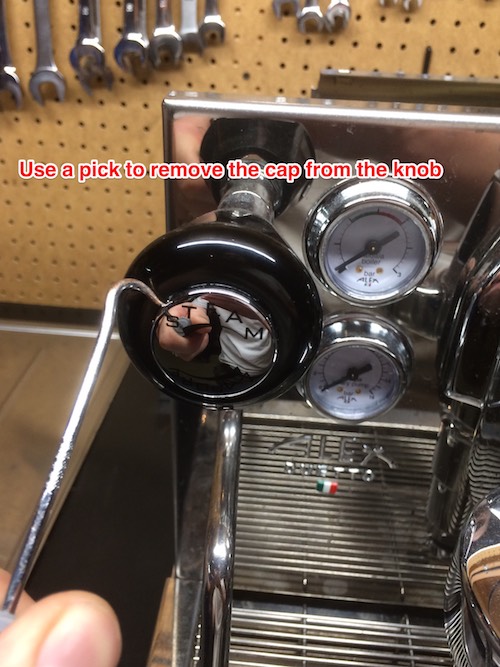

Once the cap is removed use a pick to remove the e-clip from steam valve. Be careful not to fling it across the room.

At this point you will want to apply a threadlocker to the brass bushing and fully reseat it into the knob.
